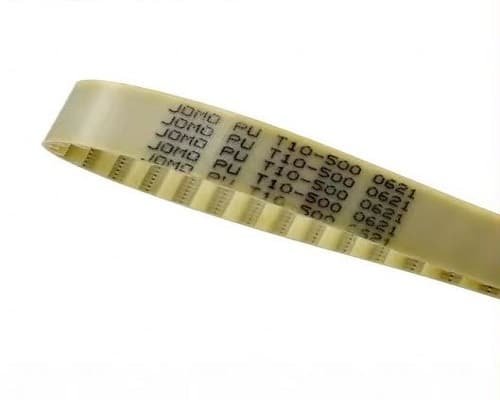

Polyurethane timing belt

T5, T10, T20, AT5, AT10, AT20, XL, L, H, XH, HTD3M, HTD5M, HTD8M, HTD14M, STD5M, STD8M, STD14M, RPP5M, RPP8M, RPP14M are suitable for linear transmission, precise positioning and conveying industries. Applications, such as office equipment, food processing, textile machinery, printing machinery, conveying equipment, glass processing, woodworking, papermaking, etc.

Request a quote
Share
Product description

During the production process of polyurethane timing belt, the steel wire rope is wound on the mold, which can produce the size structure suitable for different applications to meet customer requirements. In some high power or high positioning accuracy applications, molded polyurethane timing belts need to be stronger than spliced ​​belts. It can provide high power transmission and high positioning accuracy capabilities, and can also drive more loads.

Features/Advantages

  • Mold making, castable (CPU) polyurethane structure
  • Stable operation, low noise, no contact marks
  • The transmission capacity is equivalent to that of a closed loop belt
  • high tooth shear
  • excellent wear resistance
  • Good chemical resistance

Representation

The naming of polyurethane synchronous belts consists of width, pitch, and pitch line length, such as 10 T5/455, 10 represents 10mm width, T5 represents 5mm pitch, and 455 represents 455mm pitch line length. The belt pitch refers to the distance between the centers of two adjacent teeth measured on the pitch line, in millimeters. Belt pitch line length is the total circumference measured along the belt pitch line. .

Polyurethane timing belt model

MXL/XL/L/H
T2/T2.5/T5/T10/T20
AT3/AT5/AT10/AT20
ATP10/ATP15
F/AF/BF/CF/DF
K1/K1.5
T2.5-DL / T5-DL / T10-DL / T20-DL

Hardness 88 Shore
Steel wire rope (customized Kraft rope)
Width 3-250mm
Length 120-4780mm
