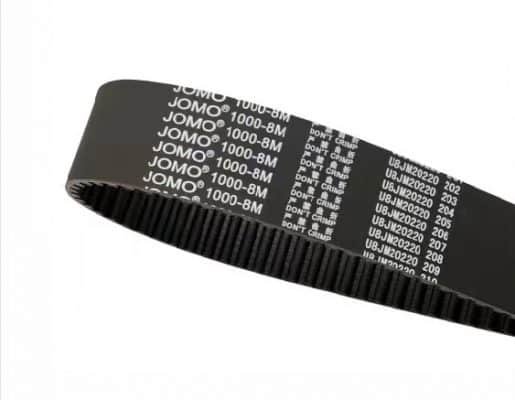

Trapezoidal tooth timing belt

MXL, XXL, XL, L, H, XH, XXH, T2.5, T5, T10, T20, AT5, AT10, AT20 are widely used in the field of synchronous transmission, economical and maintenance-free, replacing traditional transmission methods.

Request a quote
Share
Product description

Trapezoidal tooth rubber synchronous belt

Tooth type Pitch pb Tooth height ht with thick hs Angle 2B°
MXL 2.032 0.51 1.22 40
XXL 3.175 0.76 1.52 50
XL 5.08 1.27 2.3 50
L 9.525 1.91 3.60 40
h 12.7 2.29 4.3 40
XH 22.225 6.35 11.2 40
XXH 31.75 9.53 15.7 40



Tooth type Pitch pb Tooth height ht with thick hs Angle 2B°
T2.5 2.5 0.7 1.3 40
T5 5 1.2 2.2 40
T10 10 2.5 4.5 40
T20 20 5 8 40



Tooth type Pitch pb Tooth height ht with thick hs Angle 2B°
AT5 5 1.2 2.7 50
AT10 10 2.5 5 50
AT20 20 5 8 50

Timing belt product features

1. The fiberglass cord core ensures that the belt has high strength, good flexibility and high tensile resistance.
2. Neoprene effectively protects it from dirt, grease, and moisture.
3. The anti-wear nylon layer better protects the teeth and prolongs the service life.
