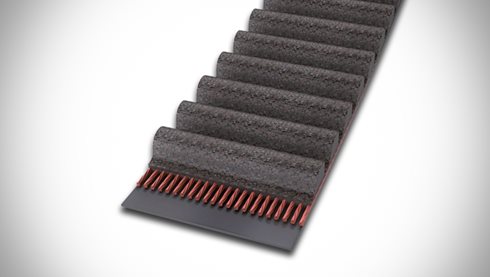

Rubber Synchronous Belts
Temperature resistant between -20°C and +100°C, depending on the application Moderately oil resistant Ozone resistant Suitable for use in tropical climates Resistant to aging Suitable for reverse flexing/reverse tensioning idlers Maintenance-free Technical specifications Technical specifications 1.
- Temperature resistant between -20°C and +100°C, depending on the application
- Moderately oil resistant
- Ozone resistant
- Suitable for use in tropical climates
- Resistant to aging
- Suitable for reverse flexing/reverse tensioning idlers
- Maintenance-free

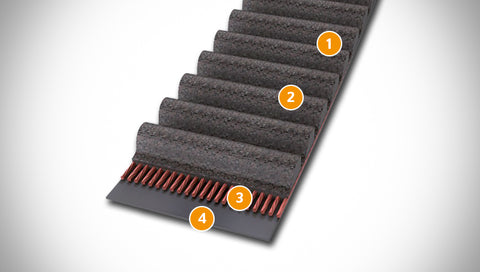

Technical specifications
- 1. Polyamide fabric
- 2. Synthetic rubber teeth
- 3. Glass cord tension member
- 4. Synthetic rubber backing
Dimensions
MXL – XXH
| Profile | Length range Lp (1/10 inch) |
|---|---|
| MXL | 43.2 – 404.0 |
| XL | 60.0 – 630.0 |
| L | 124.0 – 600.0 |
| H | 240.0 – 1700.0 |
| XH | 507.0 – 1750.0 |
| XXH | 700.0 – 1800.0 |
HTD
| Profile | Length range Lp (mm) |
|---|---|
| HTD 3M | 111 – 1569 |
| HTD 5M | 225 – 2525 |
| HTD 8M | 288 – 4400 |
| HTD 14M | 966 – 4578 |
STD
| Profile | Length range Lp (mm) |
|---|---|
| STD S8M | 440 – 2848 |
