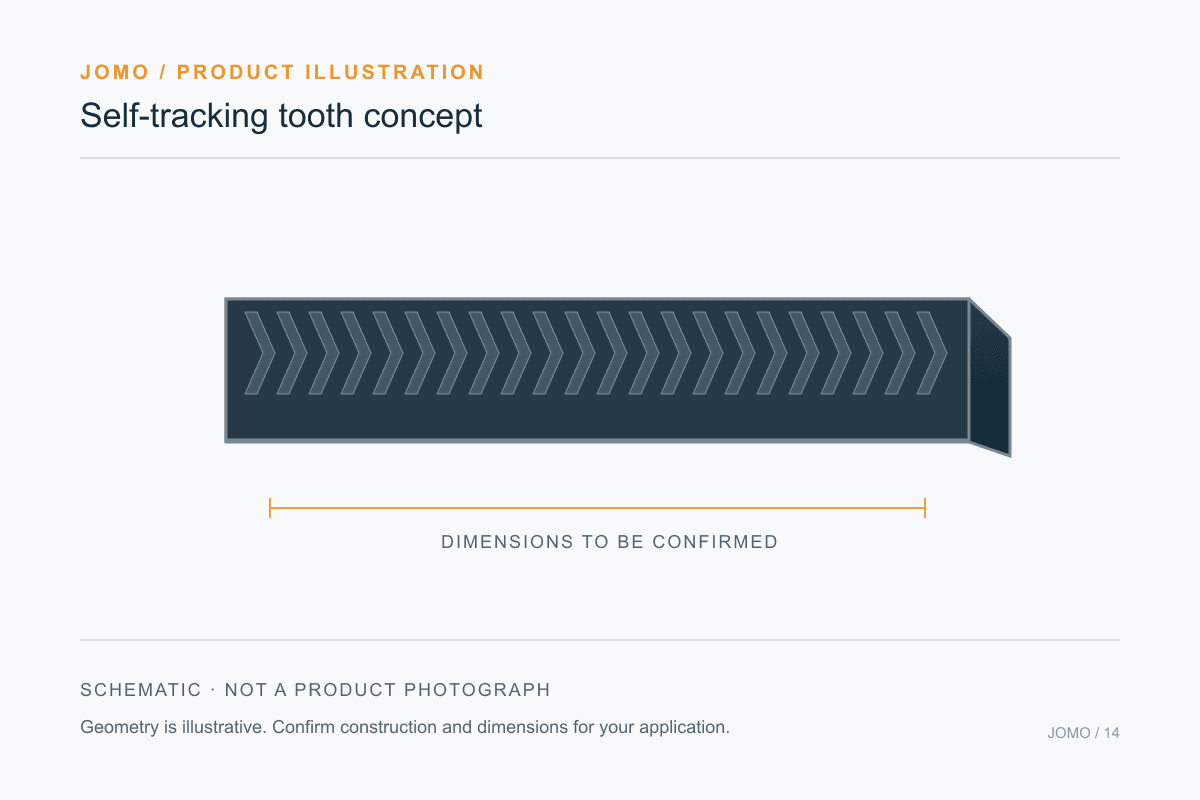

Self-Tracking Synchronous Belts
Self-tracking synchronous belts engineered for low-noise, low-vibration operation, antistatic performance and maintenance-free industrial drives.
- Temperature resistant between -30°C and +130°C, depending on the application
- Very low-noise
- Antistatic in accordance with ISO 9563
- Moderately oil resistant
- Ozone resistant
- Resistant to aging
- Maintenance-free
- Low vibration
Drive conditions and service variables in combination with time in operation can result in a loss of static conductivity. It is recommended that a conductivity check be added to drive preventive maintenance programs where belt static conductivity is a requirement.

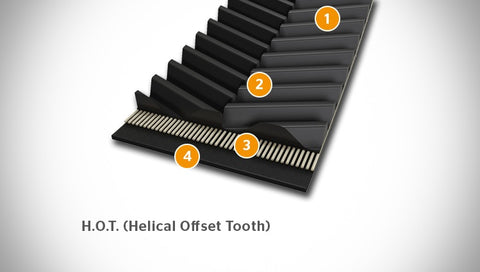

Technical specifications
- 1. Specially treated fabric
- 2. Synthetic rubber teeth
- 3. Aramid tension member
- 4. Synthetic rubber backing
Dimensions
H.O.T. 8M
| Profile | Width (mm) | Length range Lp (mm) |
|---|---|---|
| Yellow | 16 | 640 – 2400 |
| White | 32 | 640 – 2400 |
| Purple | 64 | 720 – 1600 |
H.O.T. 14M
| Profile | Width (mm) | Length range Lp (mm) |
|---|---|---|
| Blue | 35 | 994 – 3920 |
| Green | 52,5 | 994 – 3920 |
| Orange | 70 | 1120 – 3920 |
| Red | 105 | 1260 – 3920 |
